A-SUNGThe eco-friendly advanced agricultulre's leading company

  • aw-60l

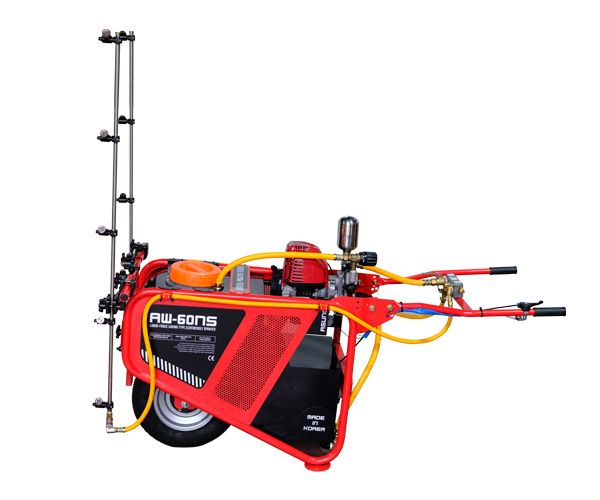

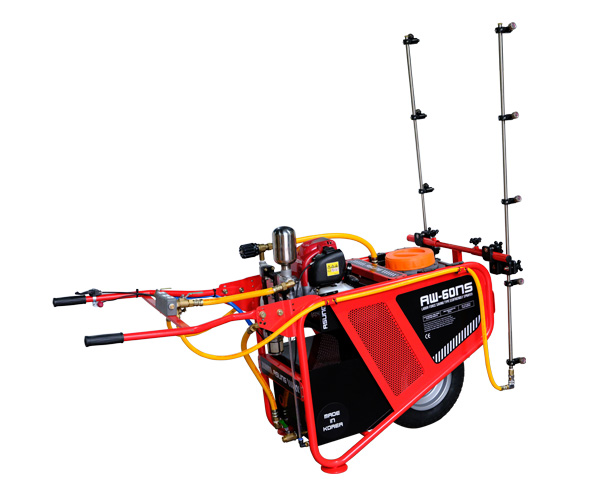

Labor-force saving type ecofriendly sprayer aw-60ns, aw-60l

Details

Mounted korea's first quad piston pump.
Mounted anti-leaking equipment for gear box to extend lifetime of pump.

  • For less force anyone to use ergonomic design.
  • Semi-permanent liquid thank uses stainless steel.(AW-60NS)
  • Load distribution is stable and can operate efficiently.
  • Change check valves can also be used as a regular spray.
Model Size(mm) =LxWxH Liquid tank
capacity		 Weight Pump Engine
Type Suction capacity Maximum
pressure		 Revolution Model Type Maximum torque Fuel
AW-60NS
(Electric)		 1,470x510x910 60§¤ 38kg Horizontal Quad piston type 15§¤/min 30kgf/§² 2,000rpm HondaGX-35 4 Cycle 1.5PS/ 7,000rpm Unleaded Gasoline
AW-60L
(Manual)		 1,470x510x910 50§¤ 35kg Horizontal Quad piston type 15§¤/min 30kgf/§² 2,000rpm HondaGX-35 4 Cycle 1.5PS/ 7,000rpm Unleaded Gasoline

¡Ø To improve quality and performance, above mentioned specification coule be changed without any notice.
