A-SUNGThe eco-friendly advanced agricultulre's leading company

  • ash-120 / 150

Asung convenient hose reel sprayer ash-100 / 120 / 150

Details

  • Innovative all-in-one hose reel and engine spray.
  • Its light weight makes it possible to be portably used.
  • It is possible to be used in orchards, rice fields and farms.

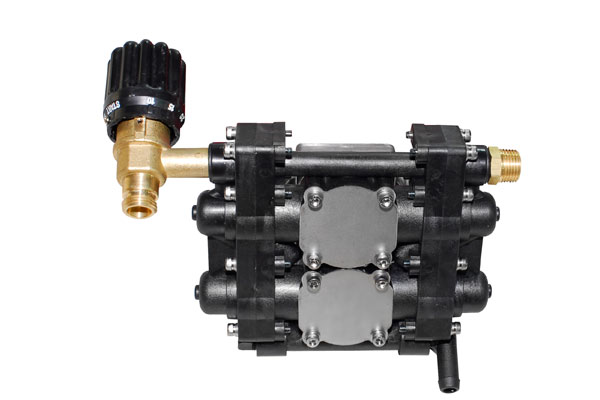

  • We acquired the patent of the new technology invention prolonging the life span of pumps.
Model Size(mm) =LxWxH Liquid tank
capacity		 Weight Pump Engine
Type Suction capacity Maximum
pressure		 Model Type Fuel
ASH-100 660x410x330 50m (¥Õ6.5) 19kg Opposed two plunger type 8§¤/min 25kg/§² ASUNG AE-26 2 Cycle Mixed gasoline (rate 25:1)
ASH-120 735x515x405 50~100m (¥Õ8.5) 27kg Horizontal Quad piston type 15§¤/min 30kg/§² ASUNG AE-40F 2 Cycle Mixed gasoline (rate 25:1)
ASH-150 735x515x405 50~100m (¥Õ8.5) 27kg Horizontal Quad piston type 15§¤/min 30kg/§² HondaGX-35 4 Cycle Unleaded Gasoline

¡Ø To improve quality and performance, above mentioned specification coule be changed without any notice.
