A-SUNGThe eco-friendly advanced agricultulre's leading company

Labor-force saving type ecofriendly sprayer
/ Independent type power sprayer as-60a / as-60aw

Details

Mounted korea's first quad piston pump.
Mounted anti-leaking equipment for gear box to extend lifetime of pump.

  • Mounted independently working motor and old persons and women can easily operate.
  • Using 10 nozzles simultaneously and large areas can be sprayed at once.

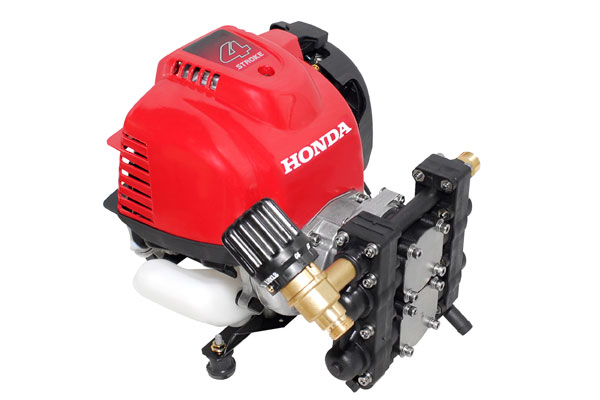

  • Mounted newly developed quad piston pump and intensive spraying can be conducted using a small engine : Patent
  • Special option : After separating the controller, transporting equipment could be mounted.
Model Size(mm) =LxWxH Liquid tank
capacity
Weight Pump Engine
Type Suction capacity Maximum
pressure
Revolution Model Type Maximum torque Fuel
AS-60A 1,470x510x910 50 57kg Horizontal Quad piston type 17/min 30kgf/ 2,000rpm HondaGX-35 4 Cycle 1.5PS/ 7,000rpm Unleaded Gasoline
AS-60AW 1,470x510x910 50 60kg Horizontal Quad piston type 17/min 30kgf/ 2,000rpm HondaGX-35 4 Cycle 1.5PS/ 7,000rpm Unleaded Gasoline

To improve quality and performance, above mentioned specification coule be changed without any notice.
