A-SUNGThe eco-friendly advanced agricultulre's leading company

  • ams-h3 (motor type)

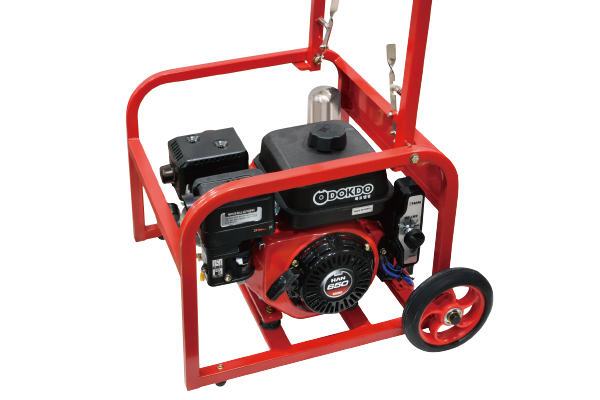

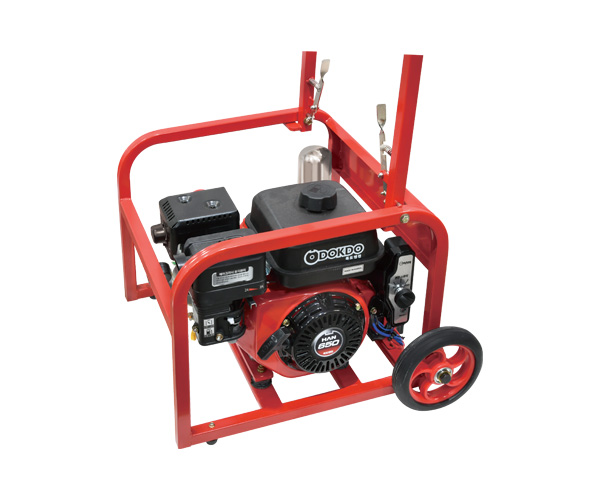

Asung convenient sprayer acs-300h / AMS-H3

Details

Easy use whenever and wherever.
Achieved new technology invention patent which lengthen the life of pump

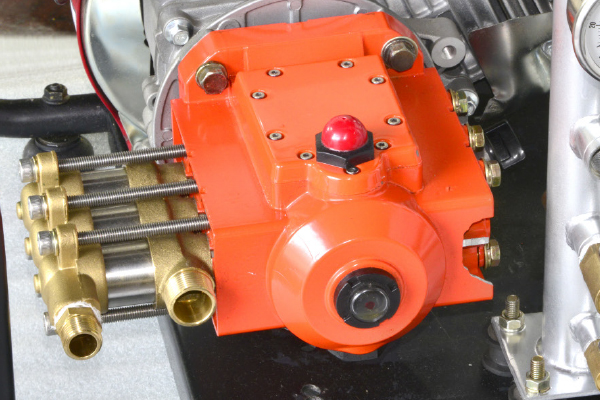

  • Attached direct engine horizontal type three piston pump, which firstly developed in Korea
  • Available to use at orchards, rice paddies, farms where have no electricity
  • Available to use not only for pest control but also for cleaning with strong pressure of the maximum pressure 40KGF/cm2(40bar)

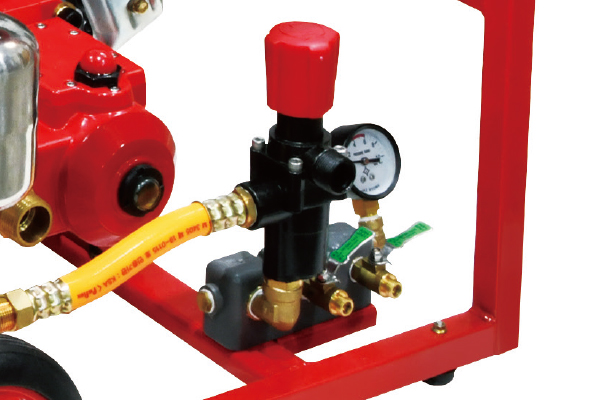

  • Available to have simple pressure control with dial
  • Piston type pump with small power consumption and high absorption efficiency
Model Size(mm) =LxWxH Weight Pump Engine
Type Suction capacity Maximum
pressure		 Model Type Maximum output Fuel
ACS-300H 600x500x550 37kg Horizontal Tri piston type 35§¤/min 40kg/§² Honda GX-160 Air cooled 4-stroke 5.5HP/ 3,600rpm Gasoline
AMS-H3 600x500x550 40kg Horizontal Tri piston type 35§¤/min 40kg/§² BOKUK MOTOR Single phase 220V 3HP/ 1,720rpm

¡Ø To improve quality and performance, above mentioned specification coule be changed without any notice.
